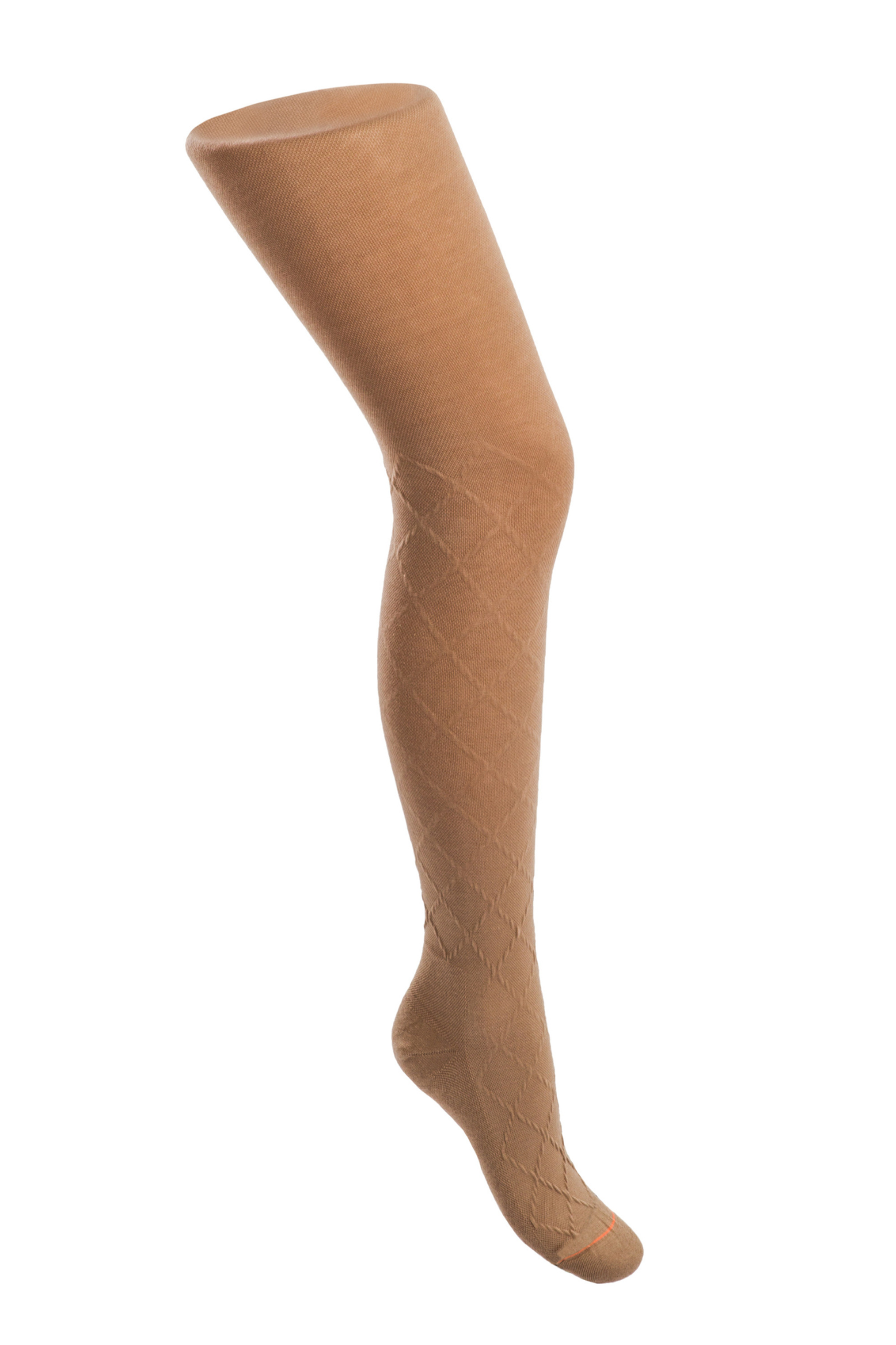

BUSI® MEDICAL TERRY is a high production single cylinder sock machine with latch needles in the dial to enable it to produce true rib, plain stitch and terry medical compression socks with compression class 1, 2, 3 and it is provided with full electronic control. The machine is provided with 2 knitting feeds for both plain stitch and true rib. The compression graduation is achieved by using the automatic stiffening, which is available on all the stitch motors, and by graduating the tension of the inlaid elastic yarn. The terry device enables the fully automatic switching from plain stitch to half terry and to full terry. The features of the machine are listed below.
| Textile possibilities | |
|---|---|
| 1x1 true rib welt | Two colors jacquard pattern on a true rib base |
| Double welt | Mesh pattern in two feeds |
| Possibility to switch from inlay to knit for the elastic in the same course | 1x1, 3x1, 5x1 ecc. true rib fabric |
| Embroidery pattern on a mock rib base: 5 colors per course plus the ground | Sandwich terry |
| Embroidery pattern on a mesh base: 4 colors per course plus the ground |
| 4” | 200 | 240 |
| 4 ½” | 226 | 280 |
| 5” | 240 | 300 |
Busi® accepts no liability deriving from improper use of the machinery. The features described in this leaflet are for information only and might be changed without prior notice. The working parameters (e.g. maximum speed) may vary depending on yarn, knitting, lubrication etc
